Figure 6
From: Multiscale forward electromagnetic model of uterine contractions during pregnancy

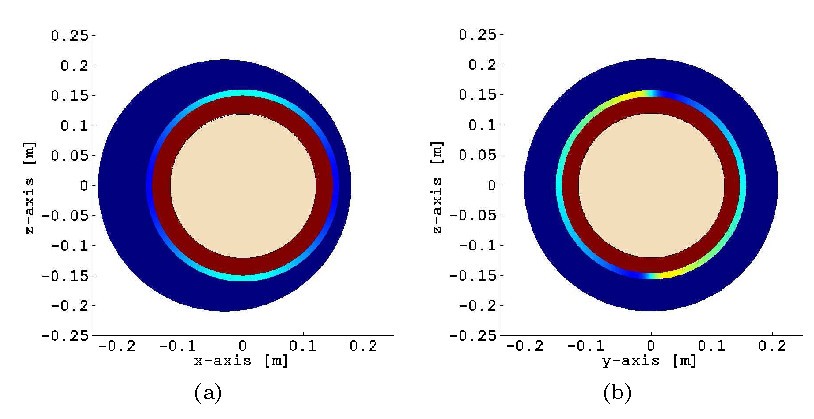

Four-compartment volume conductor geometry used in the numerical examples. (a) View of z-x plane, and (b) z-y plane. Each compartment is assigned a different color. The myometrium has a non-uniform color to denote that its conductivity is anisotropic.
